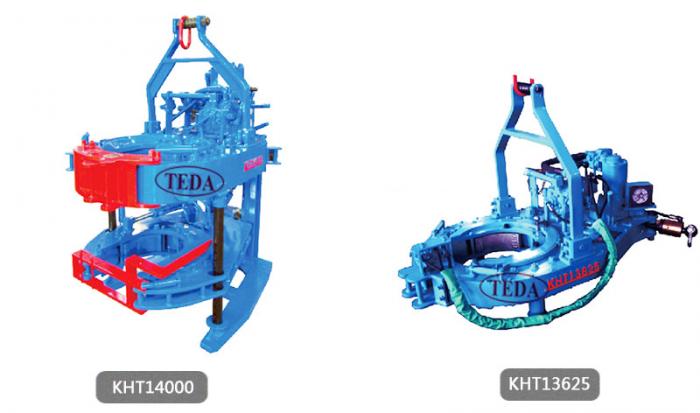

KHT Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation. The power tong has the following features as well:
Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.
Double swing head jaws, convenient to assemble and disassemble.
Brake belt assembly, easy to operate and convenient to maintain and replace.
Open gear supporting structure, improving the strength and rigidity.
Wholly hydraulic mode and mechanical gear shift.
High strength steel plate used on the shell,increasing the strength. The jaws are cast with precise technology, artistic and strong.
With hydraulic torque indicator and also installation interface, convenient to realize the computer management.
Use safety door hydraulic safety device,of great safety performance.
Large torque range,can meet the requirement of larger torque use.

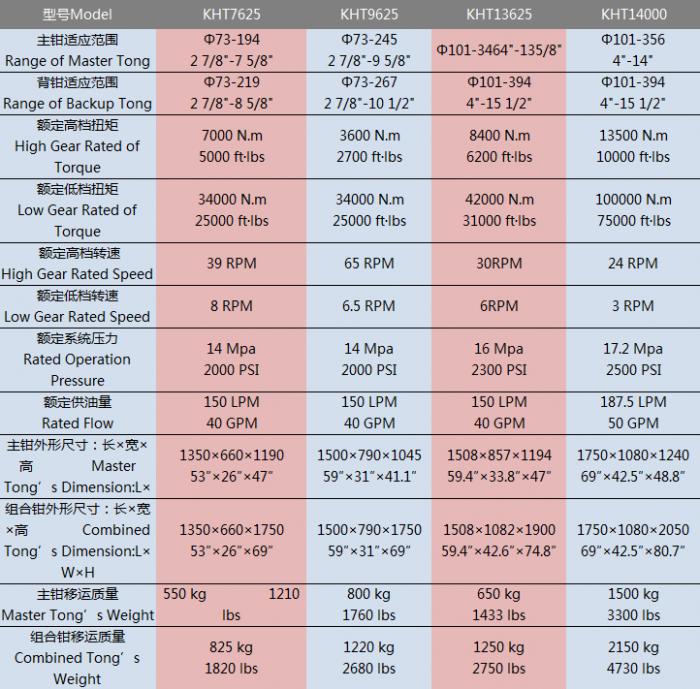

Model
|
KHT5500
|
KHT9625
|
KHT13625
|
Application range
|
23/8" - 51/2"
|
27/8" - 95/8"
|
4"- 135/8"
|
High Gear Torque
|
2500N.m @ 14MPa
3400ft-lbs @2000psi
|
2700N.m @ 14MPa
3600ft-lbs @2000psi
|
8400N.m @ 16MPa
|
Low Gear Torque
|
20000N.m @ 14MPa
27000ft-lbs @2000psi
|
25000N.m @ 14MPa
34000ft-lbs @2000psi
|
42000N.m @ 16MPa
|
High Gear rpm
|
78r/min
|
65r/min
|
30r/min
|
Low Gear rpm
|
9.5r/min
|
6.5r/min
|
5r/min
|
Dimension: L x W x H
|
1220 x 860 x 1708
|
1500 x 790 x 1750
|
1508 x 857x 1194
|
Weight
(including Backup Tong)
|
950kg
2100lbs
|
800kg
1760lbs
|
619kg
1360lbs
|
Model
|
KJD9625
|
KD13375
|
KD20-50
|
Application range
|
41/2" - 95/8"
|
41/2" - 133/8"
|
95/8" - 20"
|
High Gear Torque
|
2400N.m @ 13.8MPa
3254ft-lbs @2000psi
|
4800N.m @ 16MPa
3500ft-lbs @2320psi
|
10000N.m @ 18MPa
7000ft-lbs @2610psi
|
Low Gear Torque
|
12000N.m @ 13.8MPa
16270ft-lbs @2000psi
|
35000N.m @ 16MPa
25800ft-lbs @2320psi
|
70000N.m @ 18MPa
50000ft-lbs @2610psi
|
High Gear rpm
|
84r/min
|
42r/min
|
23r/min
|
Low Gear rpm
|
16r/min
|
6r/min
|
3r/min
|
Oil Flow
|
151 L/min
40 gpm
|
120 L/min
32 gpm
|
132 L/min
35gpm
|
Dimension: L x W x H
|
1050 x 620 x 900
|
1490 x 1055 x 650
|
1500x 630 x 650
|
Weight
(including Backup Tong)
|
500kg
1100lbs
|
1336kg
2940lbs
|
1620kg
3571lbs
|
|
