Name:OTECO GATE VALVE

Product Details

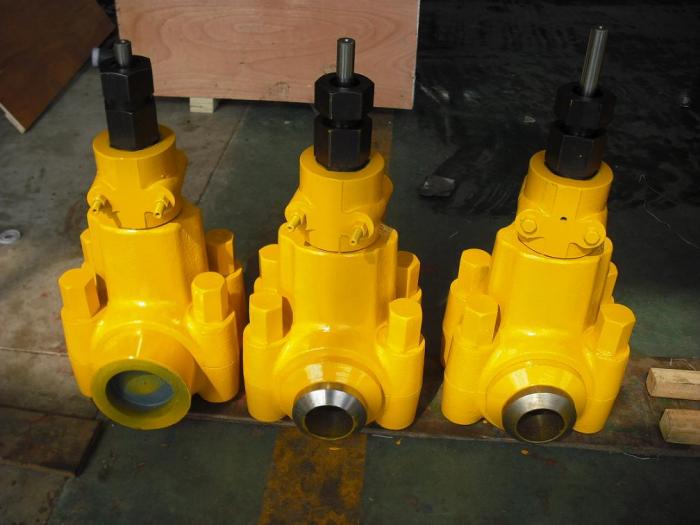

Mud Gate Valve

The mud gate valve,with superior design features precision workmanship and a proven principle are engineered to meet the harsh drilling requirements in today's oilfield.

The valve conforms to the standard flange dimensions and pressure rating of 3000 and 5000PSI working pressure,the nominal size is 2",3",4",4"X5",and temperature service up to 400°F.


Technical Data
Standard
API Spec 6A
Nominal size
2"~4"
Rated pressure
2000PSI~10000PSI
Produce Specification level
NACE MR 0175
Temperature level
K~U
Material level
AA~HH
