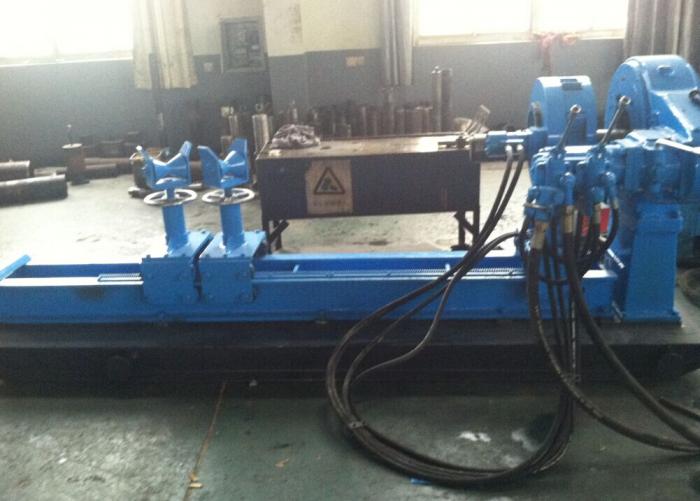

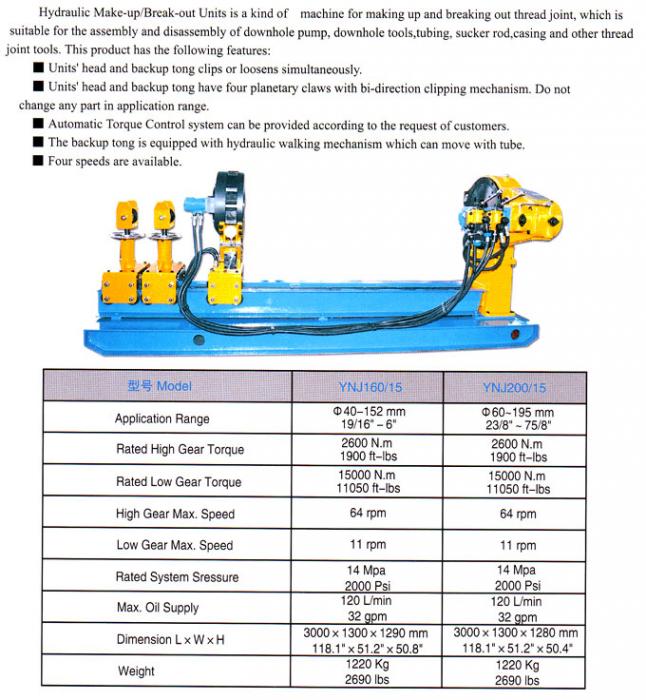

Name:YNJ200-15 Bucking unit

Product Details


Technical Parameters

Model

YNJ160/15

YNJ200/15

Application Range

Φ40-152mm

1 9/16"-6"

Φ60-195mm

2 3/8"-7 5/8"

Rated High Gear Torque

2600N.m

1900ft-lbs

2600N.m

1900ft-lbs

Rated Low Gear Torque

15000 N.m
11050ft-lbs

15000 N.m
11050ft-lbs

High Gear Max. speed

64 r/min

64 r/min

Low Gear Max.speed

11 r/min

11r/min

Rated System Pressure

14 MPa
2000psi

14 MPa
2000psi

Maximum oil supply

120L/min
32 gpm

120L/min
32 gpm

Dimension

L×W×H(mm)

3000×1300×1290
118.1"×50.2"×50.8"

3000×1300×1280
118.1"×50.2"×50.4"

Weight

1220 kg
2690 lbs

1220 kg
2690 lbs
