Product Details
Optional Stabilizers
JINJI offers several options for IBS, in both alloy steel and non-magnet materials:

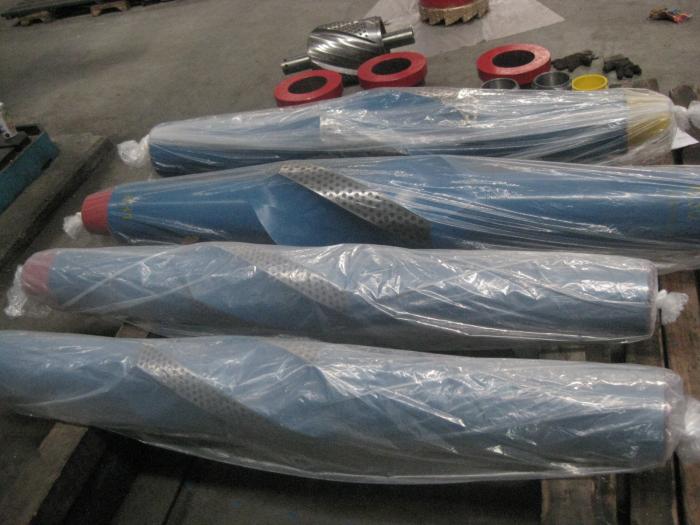

●Spiral Integral Blade Stabilizer;
●Straight Integral Blade Stabilizer;
●Non-Magnet Integral Blade Stabilizer;
When Ordering Please Specify:
●Hole size or required blade O.D.;
●Number of blades required (3 or 4 are standard styles);
●Straight or spiral blades;
●Hardfacing type ;
●Top and Bottom Connections;
●Body diameter required;
●String or Near Bit application;
●Alloy steel or non-magnet materials ;
●Special features SRG on connections, bored for float etc.
Specifications - Integral Blade Stabilizer
|
Bit size |
O.D. |
O.D. of body |
I.D. (mm) |
Length (mm) |
String type connections |
Near bit type connections |
||
|
Top |
Down |
Top |
Down |
|||||
|
6 |
152.2 |
121 |
51 |
1200 |
NC38 |
NC38 |
NC38 |
3 1/2 REG |
|
6 1/4 |
158.7 |
121 |
51 |
1200 |
NC38 |
NC38 |
NC38 |
3 1/2 REG |
|
6 1/2 |
165.1 |
121 |
51 |
1200 |
NC38 |
NC38 |
NC38 |
3 1/2 REG |
|
7 1/2 |
190.5 |
159 |
57 |
1600 |
NC46 |
NC46 |
NC46 |
4 1/2 REG |
|
7 7/8 |
200 |
159 |
57 |
1600 |
NC46 |
NC46 |
NC46 |
4 1/2 REG |
|
8 1/2 |
215.2 |
165 |
71 |
1800 |
NC50 |
NC50 |
NC46 |
4 1/2 REG |
|
| ||||||||
